Discover the mobile workstations with battery

In order to expand the area of the flexible mobile workstations, the standard mobile workstation was equipped with an additional device bracket. Thus, the IPC and accessories such as scanners can be mounted on the carrier system. A keyboard tray completes the mobile workstation with battery unit. The device bracket is implemented as a stable tubular steel construction and, in addition to the possibility of hanging up the devices, offers protection at the same time.

Another protection is the so-called impact protection, which runs 14 cm from the ground around the base body. The mobile workstation with battery is available in two variants, which differ massively in their width.

  • Mobile workstation with battery - 1 printer space (1D)
  • Mobile workstation with battery - 3 printer places (3D)

Formulate your ideas, we will take care of the construction and will be happy to implement your wishes. Due to the flexible system, we have been able to implement all customer requests so far.

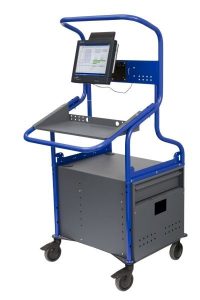

This variant of the mobile workstation with battery has space for a printer. This can be positioned at two different mounting heights. Both positions can be equipped with a printer statement.

  • Overall dimensions (seen in sliding direction):
    Width: 580mm
    Depth: 690mm
    Height: 1800mm
  • Dimensions of the upper shelf in sliding direction:
    Width: 670mm
    Depth: 200mm
    Height from floor: 1000mm
  • Printer room dimensions:
    Width: 280mm
    Depth: 600mm
    Height: 270mm
  • Height of the push handle: 1000 mm
  • Printer tray: 570 mm
  • Keyboard tray: 1200 mm
  • Center of screen: 1500 mm

The extra-large mobile workstation with batteries is primarily used to optimize work processes by ensuring direct and quick mobile access to higher-level systems. This variant of the mobile workstation with battery is the largest model of all mobile workstations, as it offers space for up to three printers. Thanks to a wide variety of drilling patterns, operating devices and other accessories can be conveniently accommodated.

  • Overall dimensions (seen in sliding direction):
    Width: 510mm
    Depth: 1500mm
    Height: 1800mm
  • Dimensions of the upper shelf in sliding direction:
    Width: 575mm
    Depth: 995mm
    Height from floor: 1070mm
  • Printer room dimensions - right and left position:
    (with printer excerpt)
    Width: 330mm
    Depth: 510mm
    Height: 520mm
  • Printer room dimensions - middle position:
    (with printer excerpt)
    Width: 450mm
    Depth: 510mm
    Height: 550mm
  • Height of the push handle: 1000 mm
  • Printer shelf: 570 mm
  • Keyboard tray: 1200mm
  • Center of screen: 1500 mm
Verkauf
Our sales team is happy to be there for you personally!

General properties of the basic body for the mobile workplace with rechargeable batteries

Mobiler Arbeitsplatz Akku 3D Drucker Rear Min

The base body of the mobile workstation with battery offers space for the battery units and the printer. The most important properties are as follows:

  • Durable work station with a solid tubular frame
  • Base body made of sheet steel housing including two removable steel fronts
  • Standard color dark gray (RAL7015), dark blue (RAL5002)
  • Customer-specific colors are also possible

Heavy-duty printer extension can hold up to 30 kg

The on-site labeling and printout is one of the focal points of the mobile workstations. That's why the mobile workstation with rechargeable batteries offers a heavy-duty printer pull-out as an expansion option.

Expansion options for the basic body

Mobiler Arbeitsplatz Lager M Schublade Min

Push handle

The practical push handle enables safe and easy control of the mobile workstation with batteries.

Lockable drawer

A drawer is part of the standard equipment of the basic body and offers space for many things that you need on the go.

Battery unit and DC-AC converter unit

Mobiler Arbeitsplatz Akku Log Min

The essential part of our mobile workstations with battery is to ensure the power supply. The supply units of the trolley solutions are selected depending on the consumers, especially their supply voltages (AC or DC) and their power consumption (VA). The battery unit of the mobile workstations with battery consists of a maximum of two batteries with a maximum of 120Ah. The standard supply voltage is 24V DC. If desired, a DC/AC converter can be retrofitted to supply 230V AC - then variants up to 1200W are available.

Supply voltage: DC 24V. Optional: AC 230V (350W, 600W or 1000W)
Capacity: 65Ah (40Ah mAP 35 x 66) Optional: 85Ah or 120Ah
The information refers to lead gel batteries. With LiFePo battery technology, the values can change accordingly.

FORSIS GF MC

"Wir beantworten gerne Ihre Fragen."

+49 (0) 751 76 414 0

Optional accessory for the mobile workstation with battery 1D

Ram protection and tires

Mobiler Arbeitsplatz Akku Rammschutz Min

The impact protection can be added as an option to the mobile workstation with battery 1D. It is about 14 cm above the ground and consists of a tubular steel frame. Primarily in the area of picking trolleys, it protects the mobile workplace with battery in the event of a collision.

  • Castors: diameter 125 mm - two swivel castors, two fixed castors
  • Tyres: different rubber hardnesses are available

Optional accessory for the mobile workstation with 3D battery

Keyboard tray

Mobiler Arbeitsplatz Akku 1d Kbd Min

For convenient operation with a keyboard, an ergonomic shelf is an integral part of the mobile work station with batteries. Due to the generous amount of space, this can be supplemented with additional shelves.

Holder for control unit and accessories

Mobiler Arbeitsplatz Akku 3D Bedienumfeld Min

Various drilling patterns are available on the mobile workstation with rechargeable batteries. Of course, these can be customized according to customer requirements. It is also possible to create a protected area for cable routing, for example using a cable duct.
