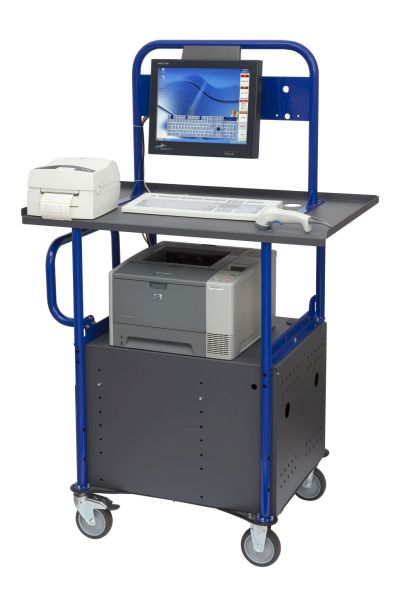

Mobiler Arbeitsplatz Lager X Iso

Great variety with the mobile warehouse workstations from FORSIS

FORSIS offers you three variants of the mobile warehouse workstation with flexible storage areas.
The three different trolley versions differ in the size of the storage areas. All three versions of the mobile warehouse workstations offer plenty of space for accommodating industrial PCs, peripheral devices and other identification systems.

Due to the most diverse customer requirements, new versions of our mobile warehouse workstations are constantly being created. The most important criterion is always the largest possible work surface for accommodating printers, scanners, scales and much more. That is why we have made it our goal to develop our mobile warehouse workstations with maximum space. The solution was to distribute the peripheral devices on two levels.

The mobile warehouse workplace is determined by the dimensions of the upper storage area. We have typified these.

  • Type S - narrow version - storage space at the top with 35 x 66 cm
  • Type M - medium variant - top shelf with 58 x 66 cm
  • Type L - large variant - storage space at the top with 58 x 100 cm

We work with the dimensioning of the storage areas on customer request, if you need something else just give us a call.

Below you will find more information about our three mobile warehouse workstations.

Due to the very compact structure, the battery capacity of this mobile warehouse workstation is limited to the installation of a maximum of one battery unit with approx. 40 Ah.
Only the variant with 350W is possible as a DC/AC converter unit.

  • Power supply for the components
    Battery technology: Type: lead gel / power: 40 Ah / voltage: 24 V DC
    Charging technology: 10A charger, integrated
    Converter: 350W / Voltage: 230V AC
  • Overall dimensions (seen in sliding direction):
    Width: 350mm
    Depth: 690mm
    Height: 950mm
  • Dimensions of the upper shelf in sliding direction:
    Width: 345mm
    Depth: 685mm
    Height from floor: 950mm
  • Printer room dimensions:
    Width: 280mm
    Depth: 600mm
    Height: 270mm
  • Height of the push handle: 915 mm

The mobile warehouse workstation type M offers an upper work surface of 58 cm width and 66 cm depth.
The base body used here forms the substructure for this and for the next larger trolley version.

  • Power supply for the components
    Battery technology: Type: lead gel / capacity: 65, 85 or 115 Ah / voltage: 24 V DC
    Charging technology: 10A or 15A charger, integrated
    DC/AC converter: 350W, 600W, 1200W or 1800W / Voltage: 230V AC
  • Overall dimensions (seen in sliding direction):
    Width: 580mm
    Depth: 690mm
    Height: 1070mm
  • Dimensions of the upper shelf in sliding direction:
    Width: 575mm
    Depth: 655mm
    Height from floor: 1070mm
  • Printer room dimensions:
    Width: 600mm
    Depth: 560mm
    Height: 400mm
  • Height of the push handle: 1000 mm

The mobile storage workstation offers even more space on the work surface with the dimensions of the upper shelf 58 depth x 100 width cm.

The lower area of the mobile warehouse workstation is exactly the same as in the middle variant. In vehicle construction, one speaks of chassis and running gear. We do this too !

  • Power supply for the components
    Battery technology: Type: lead gel / capacity: 65, 85 or 115 Ah / voltage: 24 V DC
    Charging technology: 10A or 15A charger, integrated
    DC/AC converter: 350W, 600W, 1200W or 1800W / Voltage: 230V AC
  • Overall dimensions (seen in sliding direction):
    Width: 580mm
    Depth: 1000mm
    Height: 1070mm
  • Dimensions of the upper shelf in sliding direction:
    Width: 575mm
    Depth: 955mm
    Height from floor: 1070mm
  • Printer room dimensions:
    Width: 600mm
    Depth: 560mm
    Height: 400mm
  • Height of push handle: 1000< mm
distribution
Our sales team is happy to be there for you personally!

General mechanical properties of the mobile warehouse work station

Mobiler Arbeitsplatz Lager M Iso Min

Common MECHANICAL properties of all mobile warehouse workstation variants:

  • Extremely stable and resilient tubular steel construction
  • Base body made of sheet steel, powder-coated, grey/blue
  • 2x swivel castors 125mm with stopper, solid rubber tires
  • 2x fixed castors with 125mm diameter, solid rubber tires
  • Basic body with removable back panel
  • Push handle at appropriate height
  • Keyboard tray
  • drawer

The basic body of the mobile warehouse work station

Mobiler Arbeitsplatz Lager Akku Status Min

The base body of the mobile warehouse workstation offers space for the battery units and the printer. The most important properties are as follows:

  • Durable work station with a solid tubular frame
  • Base body made of sheet steel housing including two removable steel fronts
  • Standard color dark gray (RAL7015), dark blue (RAL5002)
  • Customer-specific colors are also possible

Heavy-duty printer extension can hold up to 30 kg

The on-site labeling and printout is one of the focal points of the mobile workstations. That's why the mobile warehouse workstation offers a heavy-duty printer statement as an expansion option.

Options and expansion options for the mobile warehouse work station

Mobiler Arbeitsplatz Lager M Griff Min

Push handle

The practical push handle enables safe and easy control of the mobile warehouse workstation.

Lockable drawer

A drawer is part of the standard equipment of the basic body and offers space for many things that you need on the go.

mounting bracket

FORSIS MAP KBD Total Min

The space available on the standard shelf is not enough for you?

The mounting bracket can help as an extension. This accessory for the mobile workstation makes it possible to move devices that are otherwise positioned on the shelf to the top of the bracket.
This brings a lot of order into the daily routine. First and foremost because the end device no longer takes up any space on the work surface. But if it is hung on the mounting bracket, very simple cabling is also possible. These cables then no longer disturb the work surface in any way. Just like e.g. the scanner or a connected PDA.

Basically, all mobile workstations can be supplemented with the mounting bracket. It is installed using the attachment points on the work surface. The mounting brackets are available from body M. Depending on the selected storage area, it makes sense to use the entire width of the mAP. FORSIS offers different mounting brackets. The structure and attachment are identical. Only the width of the mounting brackets differs.

Shelves at the top of the mounting bracket

MAP A4 Ablage Frei Min

We also offer the option of "DIN A4" storage on the mounting bracket.

Of course intended for recording your documents. But so stable that even small label printers can be accommodated.

Desk tray

FORSIS MAP Desktop G Front Min

In addition to the "mounting bracket" option, we also offer the "desk tray".

Here, too, with the aim of securing and expanding your space requirements. With the "desk shelf", the mobile office offers even more functionality.

You get a third level, so to speak. In addition to the printer position at the bottom and the normal work surface at table height, the desk shelves offer further options for use at the top. For example, storage compartments, magnetic suspensions and much more are available.

The desk shelves are very easy to attach and can also be retrofitted to existing mobile workstations. Two variants are offered as standard, whereby your needs can also be taken into account here.

Side shelf

FORSIS MAP Side Table2 Min

Taking and using printers is one of the main reasons and uses of mobile workstations.

Securing the appropriate power supply is of course technically demanding. You can find more information on this in the separate data sheet.

Another important point is safe mechanical storage and ergonomic use. Above all, it must be possible to change label rolls or paper quickly and easily. Printers can be positioned on three levels:

  • The classic place at the bottom of the printer statement - preferred for laser printers
  • On the desktop - preferred for label printers
  • On the additional side shelf

Keyboard excerpt

FORSIS MAP KBD Iso Min

Clean Desk for mobile workstations too.

A keyboard is usually included. With the additional pull-out keyboard shelf, we offer you the option of storing the keyboard safely and having it ready to hand at all times.

Please note. The overall height of the printer, which could stand underneath, is reduced accordingly.
Here we are at your disposal for advice.

Picking container

FORSIS MAP Box Flat Min

The desire to expand the mobile workplace so that it can also be used as a mobile picking station was repeatedly expressed.

In the course of further development, this option has now also been created.
It is based on a flexible mounting system, which was implemented to securely hold the plastic tub. The plastic tray is used to store the packages for picking. Of course, the number of packages is limited and the total weight of the filled tub must not exceed 30kg. But this solution proves to be extremely practical, especially when picking small packages. Thanks to this extension, the entire process can be mapped.

Complete solution.
Direct access to the WWS is given, it can be labeled and the boxes can be handed over with the corresponding delivery and order papers. Big advantage.
This bracket can be retrofitted at any time. Only the impact protection is necessary for this, because this serves as a mounting point for the holder of the tub. The largest usable plastic tub has a volume of 600x400x330mm - i.e. 1m³.

PreSales NORD Klaus Seidel

"Wir beantworten gerne Ihre Fragen."

+49 (0) 751 76 414 0

Battery unit and DC-AC converter unit

Mobiler Arbeitsplatz Lager Akku Min

Securing the power supply is an essential part of our mobile warehouse workstations. The supply units of the trolley solutions are selected depending on the consumers, especially their supply voltages (AC or DC) and their power consumption (VA). The battery unit of the mobile storage workstations consists of a maximum of two batteries with a maximum of 120Ah. The standard supply voltage is 24V DC. If desired, a DC/AC converter can be retrofitted to supply 230V AC - then variants up to 1200W are available.

Supply voltage: DC 24V. Optional: AC 230V (350W, 600W or 1000W)
Capacity: 65Ah (40Ah mAP 35 x 66) Optional: 85Ah or 120Ah
The information refers to lead gel batteries. With LiFePo battery technology, the values can change accordingly.

  • Battery units with 24V DC supply voltage
  • Battery monitor with
  • Converter units for 230V DC as options in different performance dimensions



The distinction between the mobile warehouse workplaces was made depending on the following criteria:

  • Space available in the warehouse and analysis of the routes in terms of width
  • The dimension of the upper work surface on the respective mobile storage work station
  • The number of printers to carry
  • Solid tubular frame construction including two removable aluminum fronts
  • Sheet steel housing
  • Colouring: dark gray (RAL7015) and dark blue (RAL5002) or according to customer requirements
  • Push handle for easy handling
  • Two swivel castors and two fixed castors - diameter: 125 mm
  • In addition to the tyres: different rubber hardnesses are possible
  • Drawer compartment
