Stainless steel PC multi-touch
The EXPERT SBC series has been expanded to include a multitouch variant. One can be divided as to how it is possible to work with glass surfaces directly in the food environment. Ultimately, it is about the function of gesture control and hygiene. The issue of glass breakage can be avoided with a protective film on the front, but what about hygiene then? A contradiction.
The objective is of course clear, as in the industrial environment, to enable the display of complex visualizations. The new model presents itself in a new design without losing functionality.
EXPERT SBC 1850, 2150 oder 2400 MT – display and touchscreen technology
- LCD sizes until 24" in 16:9 format
- PCAP touchscreen technology (multitouch)
- Protection class: IP67 on the front
The attention to detail is visible in the processing of the front. The smooth, gapless surface offers no point of contact for dirt. Extensions are always possible. See for yourself.
The deciding factor for both forms of the EXPERT SBC series is definitely the position of the interfaces and the form of the cable feed, which is on the back of the device and the cassette is installed in a lower-lying position. The connection area is protected by various covers with up to protection class IP69. This means that the cable can be routed to the stainless steel PC directly from the wall at the factory. Nevertheless, the viewing angle can always be set individually. Expensive boom systems or cabling are not necessary.

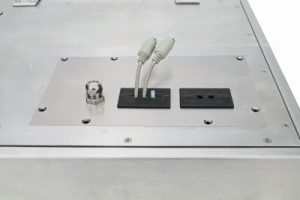

Cable feed from behind, sunk into the interface cassette
- Connection area protected by various covers in the picture the RITTAL cover
- Protection class IP69 on the front, connection depending on protection variant
- Analog resistive touchscreen technology can be operated with gloves
- Shatter protection due to the front foil in front of the glass carrier
- Compact design due to the very low device depth
- RFID readers can be integrated into the housing or attached
Extremely flat design - interfaces at the back
The stainless steel PC Multitouch 2150 has a housing depth of only 90 mm. The outer overall dimensions are 585 mm wide and 383 mm high. All PC components including the power supply are built into the device. Despite the minimal overall height, the convenient access to the interfaces on the rear of the device allows service-friendly access. These devices are equipped with the latest CPU technology from INTEL CORE i-Series Skylake technology. Read more here.
Capacitive Multitouch Technology (PCAP)
The EXPERT 2150 MT is designed for use in food production and the pharmaceutical environment, in which more than just a feedback dialogue takes place. The representation of processes and general overviews are made possible here and can be controlled. The touch technology offers the following features:
- Operation with up to 10 fingers,
- Water and palm rest detection
- highly secure protective glass with a thickness of up to 2mm
- The glass front is stretched across the entire front of the device
- Protection class IP67 on the front
Options for the EXPERT SBC MT - 2D barcode reader
ForSIS always focuses on the functionality of the device.
This is also the case with the EXPERT SBC MT series. An optional 2-D barcode reader and
further accessories can be integrated.
Options for EXPERT SBC MT - RFID Reader
Employee identification also in the food environment. This is easily possible with the optional installation of the contactless RFID reader.
The protection class is IP65. The processes LEGIC© (advant), mifare© (DESFire) or hitag© are possible.
Classic mounting or on the support arm
The classic fastening systems from FORSIS, the base and wall bracket, can always be used.
Due to the intended use of the device, it can also be installed using a "gallows system", i.e. a rigid or movable support arm, also made of plastic.
