Stainless steel PC multitouch

Startseite » Food industry » EXPERT SBC MULTITOUCH

The EXPERT SBC series is being expanded to include a multi-touch version. One can be divided as to how it is possible to work with glass surfaces directly in the food environment. Ultimately, it is about the function of gesture control and hygiene. The issue of broken glass can be avoided with a protective film on the front, but what about the hygiene again. A contradiction.

The objective is of course clear, as in the industrial environment, to enable the display of complex visualizations. The new model has a new design, but without losing any of its functionality.

EXPERT SBC 2150 MT - display and touchscreen technology

  • LCD sizes: 21.5 “in 16: 9 format
  • PCAP touchscreen technology
  • Degree of protection: IP67 on the front

The attention to detail is evident in the workmanship of the front. The smooth, gapless surface offers no point of attack for contamination. Extensions are always possible. See for yourself.

The decisive factor for both forms of the EXPERT SBC series is in any case the position of the interfaces and the form of the cable feed, which is on the back of the device and the cassette is installed in a lower-lying one. The connection area is protected by various covers with up to protection class IP69. This means that the cable feed to the stainless steel PC can be routed out of the wall at the factory. Nevertheless, the viewing angle can always be set individually. Expensive boom systems or the piping of the cabling is not necessary.

Cable feed from behind, sunk into the interface cassette

  • Connection area protected by various covers, the RITTAL cover in the picture
  • Protection class IP69 on the front, connection depending on the protection variant
  • Analog resistive touchscreen technology can be operated with gloves
  • Splinter protection due to the front foil in front of the glass carrier
  • Compact design due to the very small depth of the device
  • RFID readers can be integrated into the housing or attached
Sales
Our sales team will gladly answer your questions!

Extremely flat design - interfaces to the rear

Edelstahl Pc Multitouch Side Min

The stainless steel PC Multitouch 2150 has a housing depth of only 90 mm. The overall external dimensions are 585 mm wide and the device is 383 mm high. All PC components including the power pack are built into the device. Despite the minimal height, the convenient access to the interfaces on the rear of the device allows service-friendly access. These devices are equipped with the latest CPU technology from INTEL CORE i-Series Skylake technology. Read more here.



Capacitive multi-touch technology (PCAP)

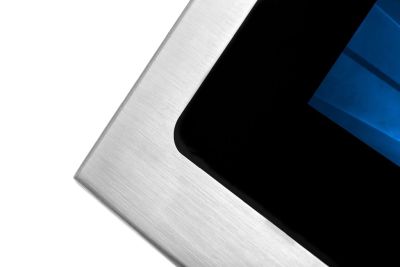

Edelstahl Pc Multitouch Uebergang Min

The EXPERT 2150 MT is designed for use in food production and the pharmaceutical sector, in which more than a mere feedback dialogue takes place. Processes and overall overviews are made possible and can be controlled here. The touch technology offers the following features:

  • Operation with up to 10 fingers,
  • Detection of water and palm rest
  • Highly secure protective glass with a thickness of up to 2mm
  • The glass front extends over the entire front of the device
  • Protection class IP67 on the front

Options for the EXPERT SBC 2150 MULTITOUCH

Edelstahl Pc Multitouch 2D Scanner Min

FORSIS always focuses on the functionality of the device. This is also the case with the EXPERT SBC 2150 MT. On the underside of the device are the openings for an RFID reader, an optional integrable 2-D barcode reader and
further accessory options.

Contactless RFID reader integrated, optionally LEGIC © (advant), mifare © (DESFire) or hitag ©.

Classic mounting or on the support arm

Edelstahl Pc Multitouch Ruekansicht Min

The classic fastening systems from FORSIS, the stand and wall bracket, can always be used.

Due to the intended use of the device, it can also be installed using a “gallows system”, i.e. a rigid or movable support arm, also made of plastic.
